What are the key points of mold design?

Views:14     Author:Site Editor     Publish Time: 2021-03-16      Origin:Site

What are the key points of mold design?


Is the parting Line , gate location , the layout design of the cooling circuit or the selection of mold materials? Or some other points?

Pleasae find our design engeers answer below.



1. The overall layout of the mold is reasonable.

2. Selection of parting line location

3. The layout of material flow channel and the selection of gate

4. Ejection system

5. Cooling layout

6. Venting location

7. Pay attention to the draft Angle, inserts’ movement, the treatment of the touch Angle and the selection of the shrinkage of materials

8. Process drawing should be detailed, but simple.


The target for us is Can release, Easy processing, Easy ejection!

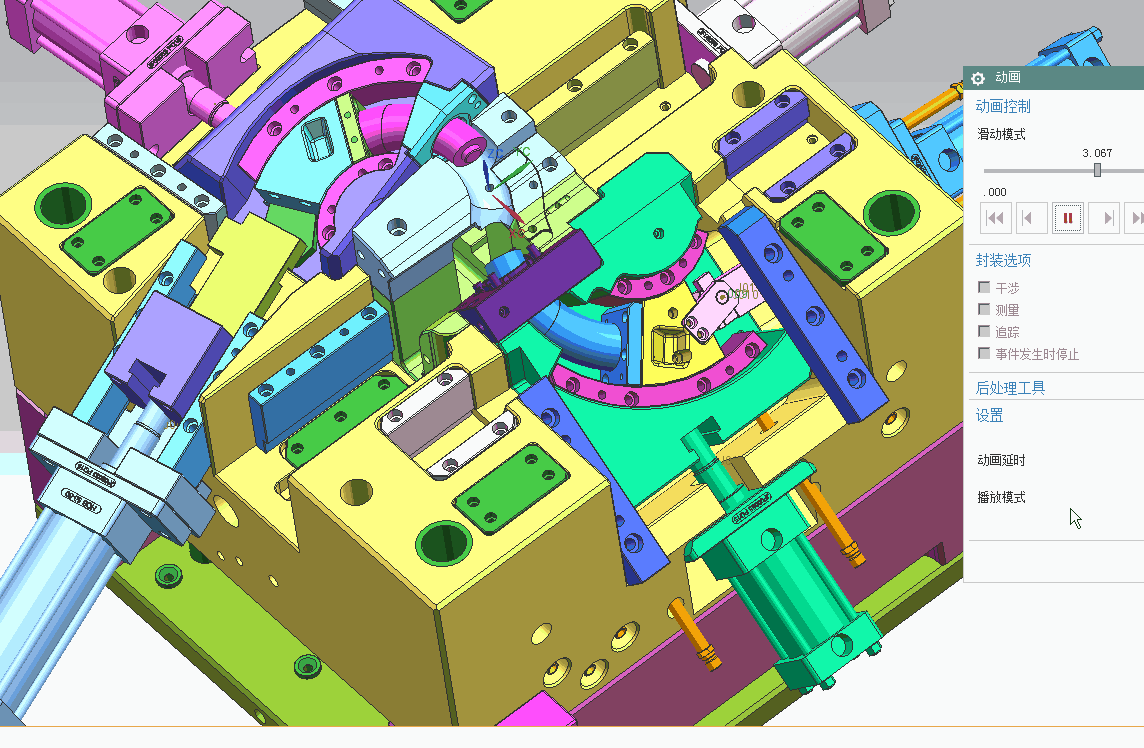

微信图片_20210316133429
